Belt Filter Presses

Charter Machine Company manufactures belt filter presses for reliable sludge dewatering across municipal wastewater treatment, industrial processing, and biosolids handling applications. These sludge dewatering systems provide consistent, high-throughput performance across a wide range of sludge types and feed conditions. Belt filter presses are available in multiple configurations, including horizontal and vertical designs, two- or three-belt systems, varying belt widths, and configurable gravity deck lengths to match specific process requirements and throughput demands. Systems can also be configured as mobile units or fully integrated, plug-and-play solutions incorporating feed pumps, compressors, polymer systems, mixers, conveyors, and control panels. Based on extensive operator feedback and field experience, these belt filter press systems achieve stable solids capture, consistent cake formation, and efficient water removal to produce higher dry solids content. For more information on the sludge dewatering process, see our detailed guide on belt filter press operation.

2 Belt

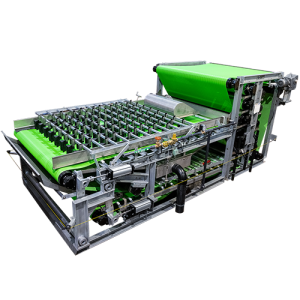

Tower Press

The Tower Press product line is designed for high-efficiency sludge dewatering, with an emphasis on operator accessibility and process control. It features an optimized pressure zone to achieve higher cake dryness than conventional horizontal belt press configurations. As a vertical belt press design, it increases dry solids content by extending retention time and improving the effectiveness of each dewatering stage through increased belt wrap and improved gravity-assisted drainage as material moves upward through the pressure zone. The 205° minimum belt wrap at each roller increases contact time under compression while allowing water to drain away from the cake at each stage, improving separation compared to conventional horizontal configurations. A patented stainless steel drip pan system beneath each roller further prevents rewetting and enhances overall dewatering efficiency. The design also includes a larger, adjustable wedge zone and a lower gravity section, improving visibility and access for operators without requiring elevated platforms.

Learn more

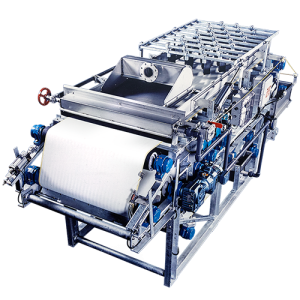

BP 6000

The BP6000 Series reimagines the traditional horizontal belt filter press. Charter’s design is engineered for reliable, high-throughput sludge dewatering, combining a rigid mechanical foundation with modern automation and process control to support consistent, long-term performance. System design focuses on maintaining stable operation under load while integrating features such as automated polymer dosing, belt cleaning systems, and operator-friendly controls. These features help ensure consistent solids capture, efficient water removal, and reduced operator involvement across varying sludge conditions. This configuration provides an economical solution with a relatively small footprint, making it well suited for facilities with space constraints. The BP6000 Series is available in multiple configurations, including the BP6000 HS (high-solids) option, which incorporates additional rollers (12 total) to increase retention time and compression.
Learn more

3 Belt

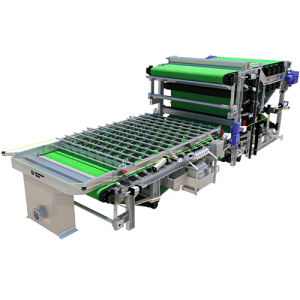

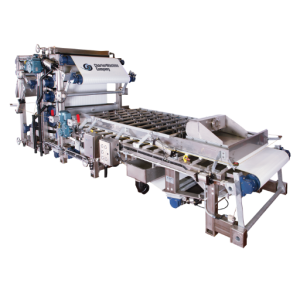

Sentry Press

The Sentry Press is a three-belt belt filter press designed for high-capacity sludge dewatering, incorporating a vertical pressure zone to efficiently process low-density and biological sludges. The independent three-belt design separates the gravity belt thickening (GBT) section from the shear and pressure zones, allowing belt speeds to be controlled independently. This overcomes the limitations of standard two-belt systems by allowing operators to better balance throughput capacity and discharge cake solids, providing greater process flexibility, improved solids capture, and enhanced dewatering performance, particularly for thin biosolids. A dedicated gravity deck with an even lower profile than the Tower Press improves operator visibility and access, while the isolated pressure zone enhances process control. This results in higher dry solids content and more manageable dewatered cake. Additional design flexibility includes feed systems such as up-flow flocculation tank configurations, which improve sludge conditioning and floc formation prior to dewatering. This supports more consistent feed distribution, enhanced solids capture, and improved overall dewatering performance, particularly for thin or difficult-to-condition biosolids.
Learn more

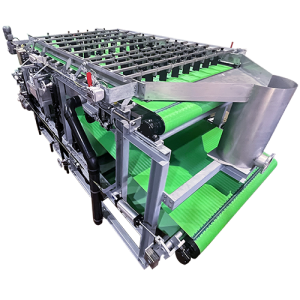

BP 8000

The BP8000 is a three-belt belt filter press designed to combine gravity belt thickening (GBT) and mechanical dewatering into a single, compact system. Utilizing a horizontal pressure zone configuration, it is well suited for facilities with space constraints or applications where sludge volumes exceed the capacity of traditional belt filter presses. The independent three-belt design allows the gravity deck to operate at higher speeds to accommodate increased feed rates, while the wedge and pressure zones maintain slower belt speeds to maximize retention time and dewatering efficiency. This improves solids capture and enables higher discharge cake solids, particularly for thin or low-density sludges. By integrating thickening and dewatering into one unit, the BP8000 reduces equipment footprint and eliminates the need for a separate gravity belt thickener, while retaining the flexibility to operate as a thickener-only system when required.

Learn more

Why Choose Us?

As a leading U.S. manufacturer of wastewater and bio-solids management equipment, CMC offers unmatched capabilities to meet the diverse needs of this critical industry. Our extensive experience and expertise allow us to work closely with operators and engineers, ensuring our equipment delivers optimal functionality and reliability. Our comprehensive approach, from design and engineering to installation and after-sales support, establishes CMC as your trusted full-service supplier.
