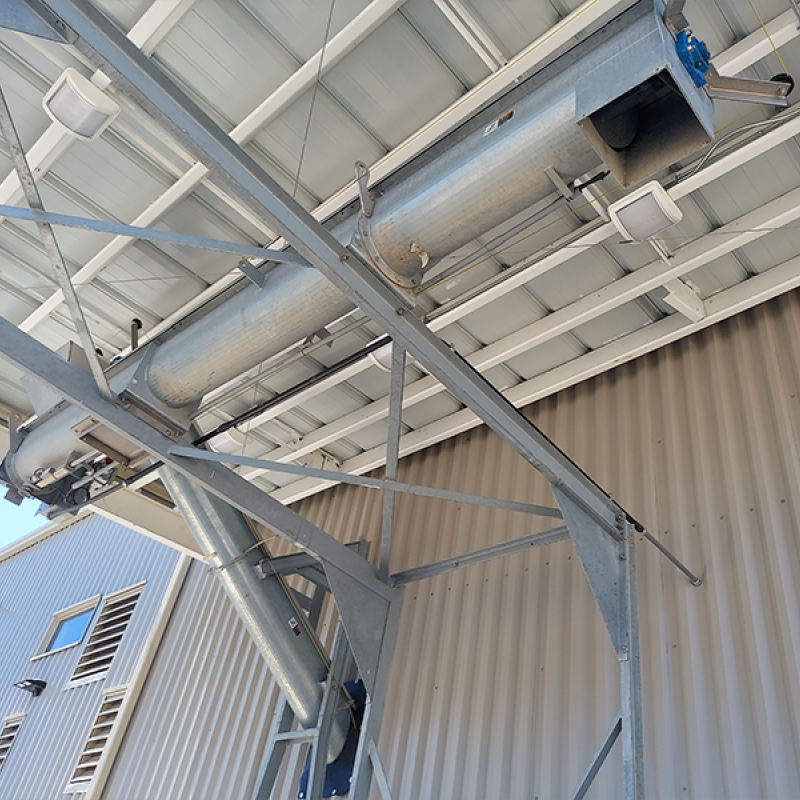

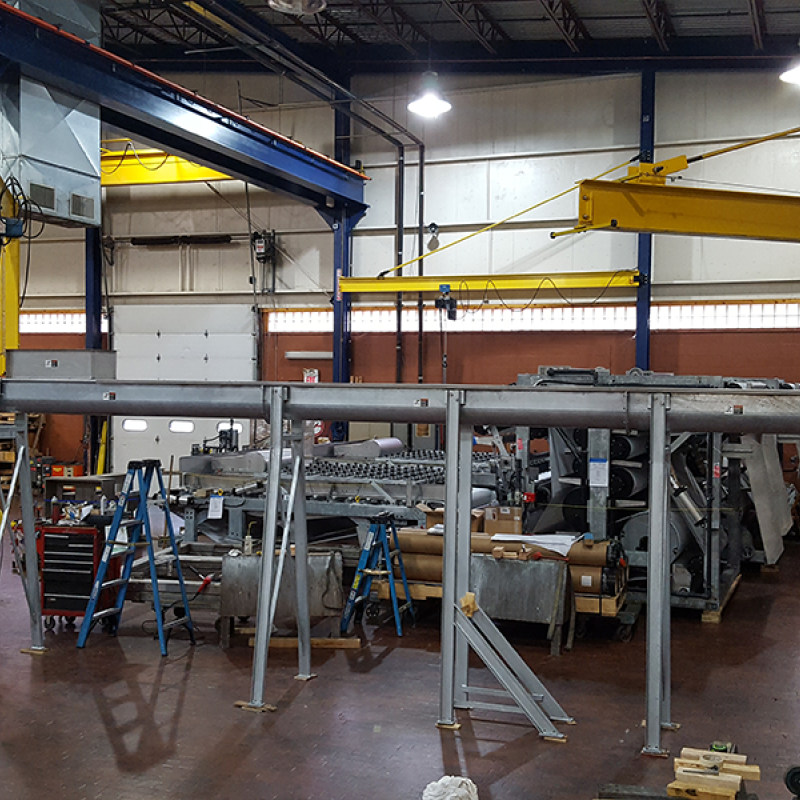

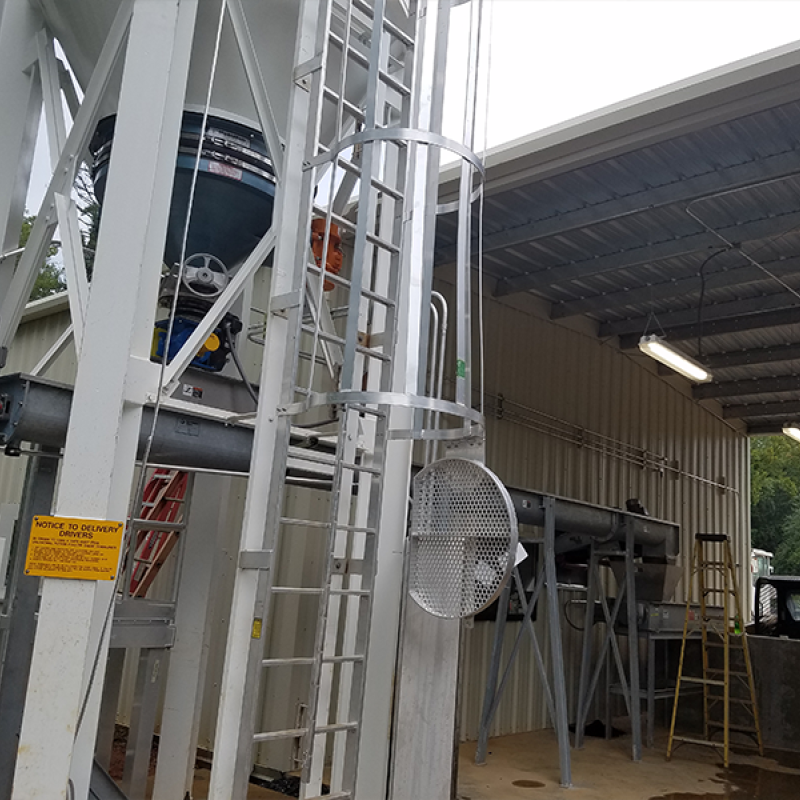

Shafted Screw Conveyor

Built for Long Hauls

Shafted Screw Conveyors utilize a central solid or tubular shaft to elevate the screw flights. This reduces friction and wear, enabling longer conveyors and faster operation.

Product Data

Description

Screw conveyors are a popular choice across industries for efficient bulk material handling. But with two main designs – shafted and shaftless – selecting the right one depends on the specific material you're dealing with. Solid materials like powders, grains, and seeds are typically well-suited for shafted screw conveyors.

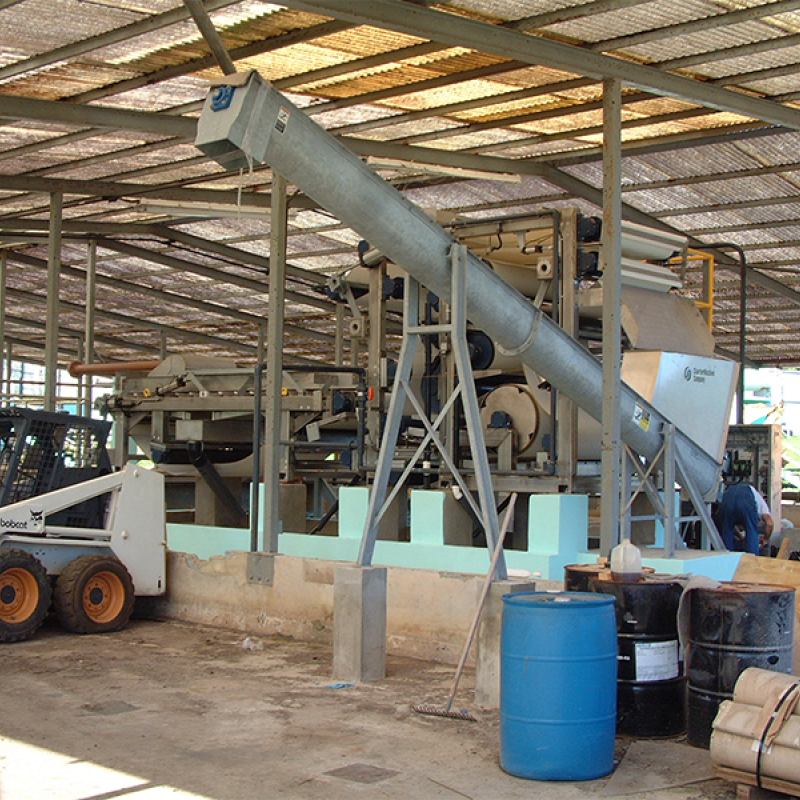

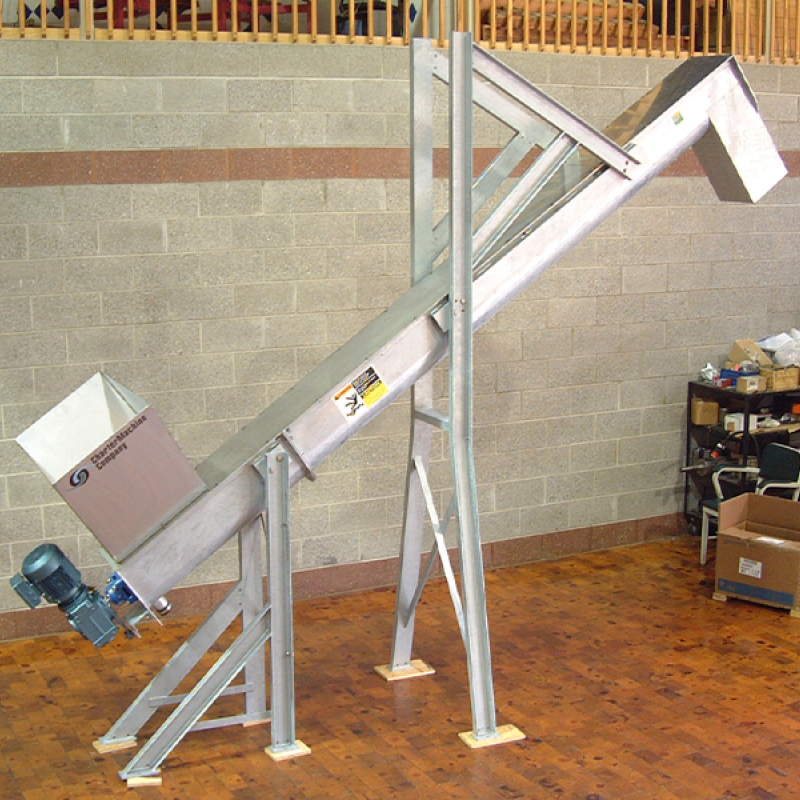

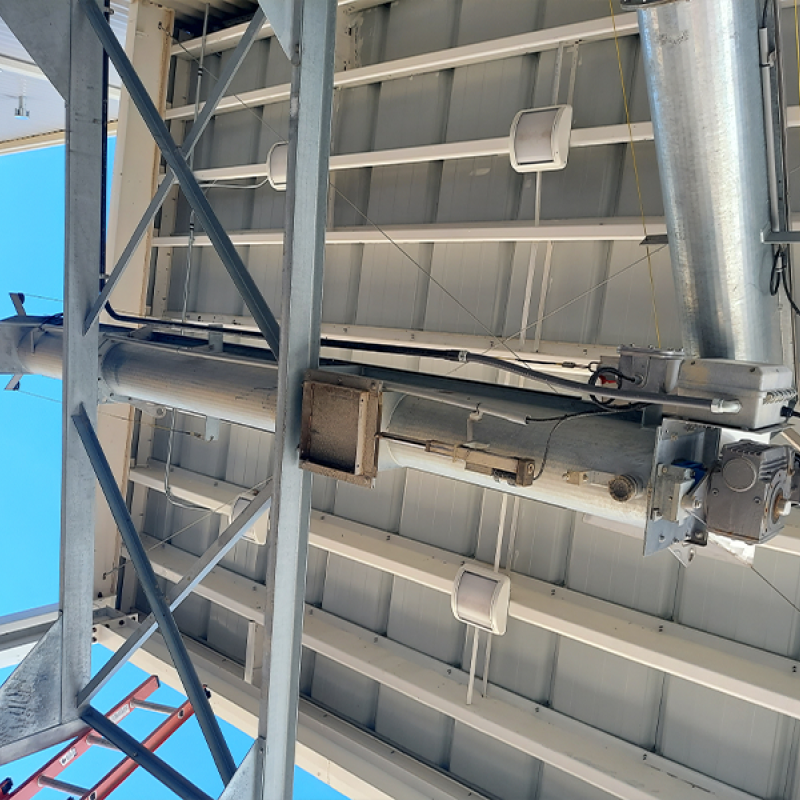

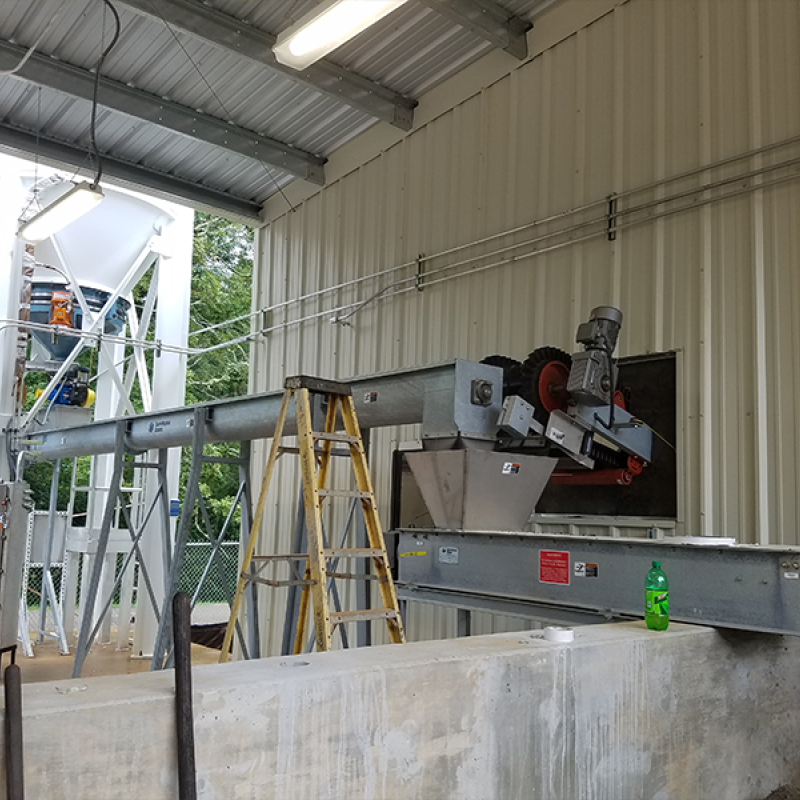

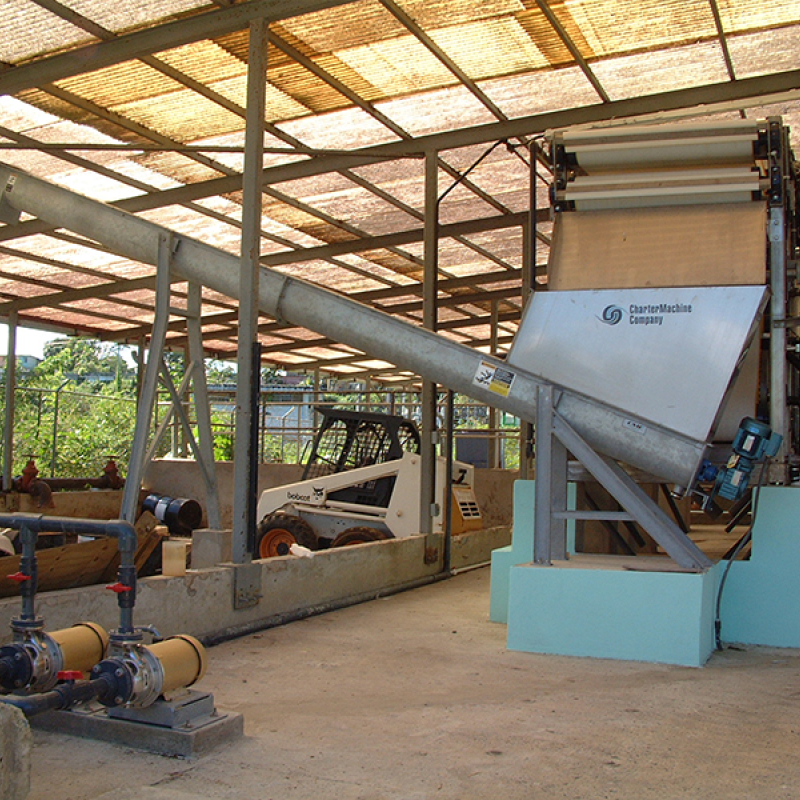

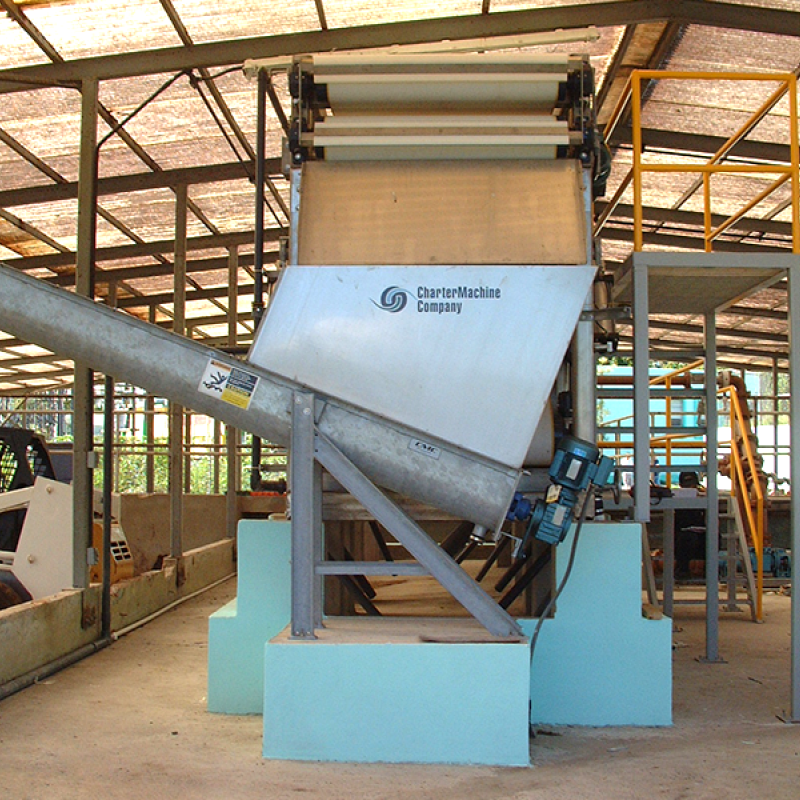

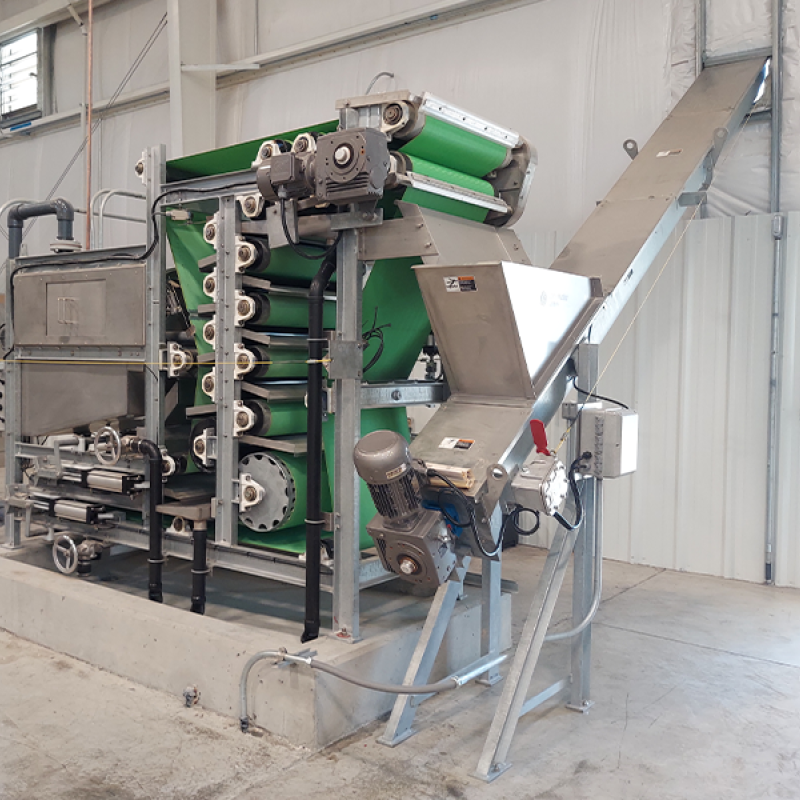

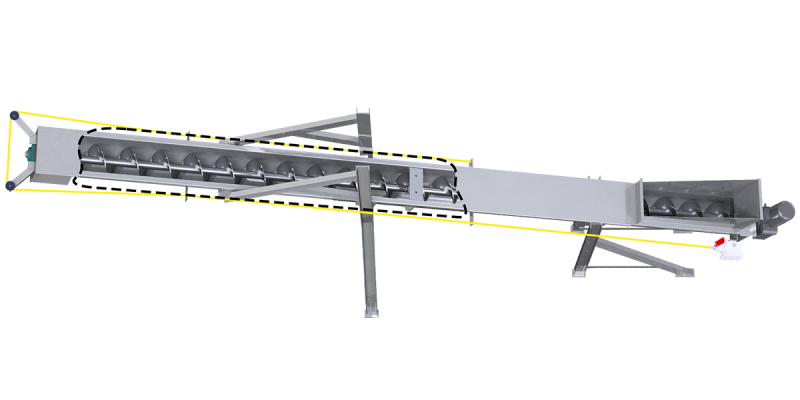

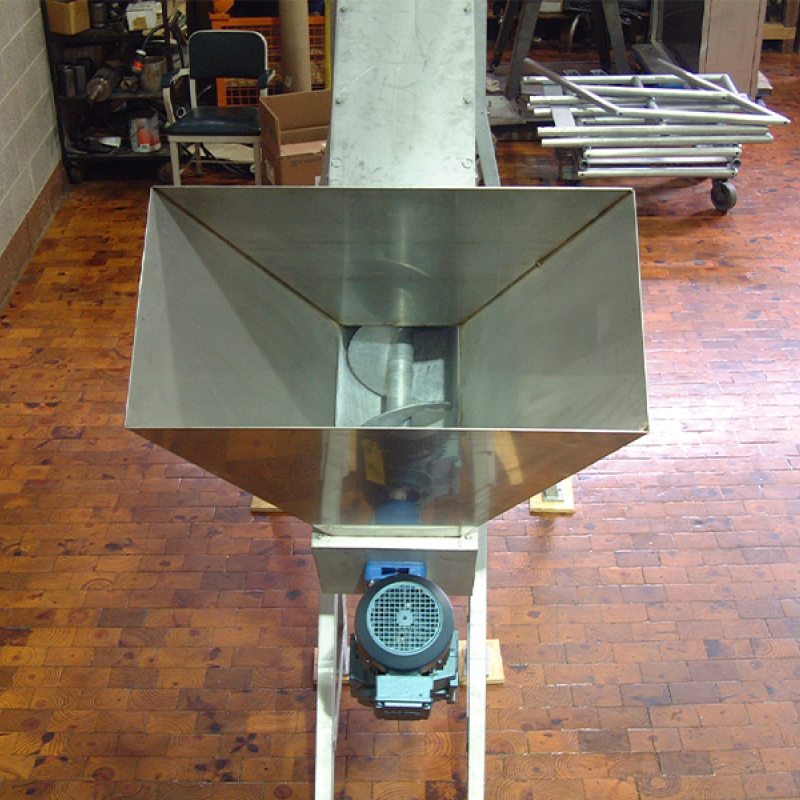

Shafted screw conveyors stand out for their versatility and efficiency. A key feature is the central solid or tubular shaft. This innovative design elevates the screw flighting within the trough, minimizing friction and wear. This translates to two significant benefits: the ability to handle longer conveying distances and operate at higher speeds for increased throughput. Furthermore, shafted screw conveyors eliminate the need for a wear liner inside the trough, reducing maintenance costs.

General Specifications

Horizontal Shafted Screw
Dia.	30% Sludge Trough Loading					Max RPM
	CFH* Full Pitch	Lbs/Hr	Dry Cake Quality (***Lbs/ds/hr)
	CFH* Full Pitch	Lbs/Hr	15%	20%	30%
6	106	6360	744	1006	1552	60
9	324	19440	2276	3076	4742	55
10	446	26760	3134	4234	6526	55
12	700	42000	4918	6646	10244	50
14	1112	66720	7812	10556	16272	50
16	1492	89520	10482	14164	21834	45

All Dimensions shown in inches

*CFH = Cubic feet per hour

***Lbs/ds/hr = Pounds of Dry Cake per hour

Features

Shafted Screw

Ideal for high-capacity applications
Suitable for longer distances
Stepped diameter, stepped pitch, and opposite hand flights can be assembled to better regulate material flow
Center pipe/shaft - faster RPM & supports screw

Optional Rubber Discharge Skirting

Abrasion resistant

Optional Slide Gate

Easily control discharge flow at one or multiple points. Slide gate discharge locations can be designed to achieve an evenly distributed and timely load-out.

Optional Insulated Troughs and Covers

Winter-proof

Benefits

Ideal for solid material such as powders, grains, seeds, etc.

Design Flexibility

Horizontal, inclined, or vertical orientation
Pushing or Pulling drives
Enclosed trough or tube
Suspension or leg support options for versatile incorporation into existing facility layouts

Seamless Operation

Easily control discharge flow with optional Slide Gate

Applications

MUNICIPAL

WASTEWATER / DRINKING WATER


Municipal Sludge Screening / Debris Grit Inorganic solids	Raw Sewage Return Sludge Alum Secondary Treatment Wastewater

INDUSTRIAL




Coal Cement Asphalt, Crushed Carbon Black Plastics Glass Cullet Aggregate	Catalysts Fiberglass Rock / Minerals / Sand Industrial Oil Sludge Lumber & Wood Byproducts Pulp / Paper

AGRICULTURE




Livestock Sludge Milk Sludge Farms, manure, animal waste Grain	Dairy, milk processors Fertilizer Organic Sludges

FOOD & BEVERAGE




Food, fruit, Vegetable processors Potato Processing Soybean Sludge Peanut Butter Corn Syrup Lard	Breweries, beverage producers Dextrose Chocolates Jellies & Condiments Extracts
